Model

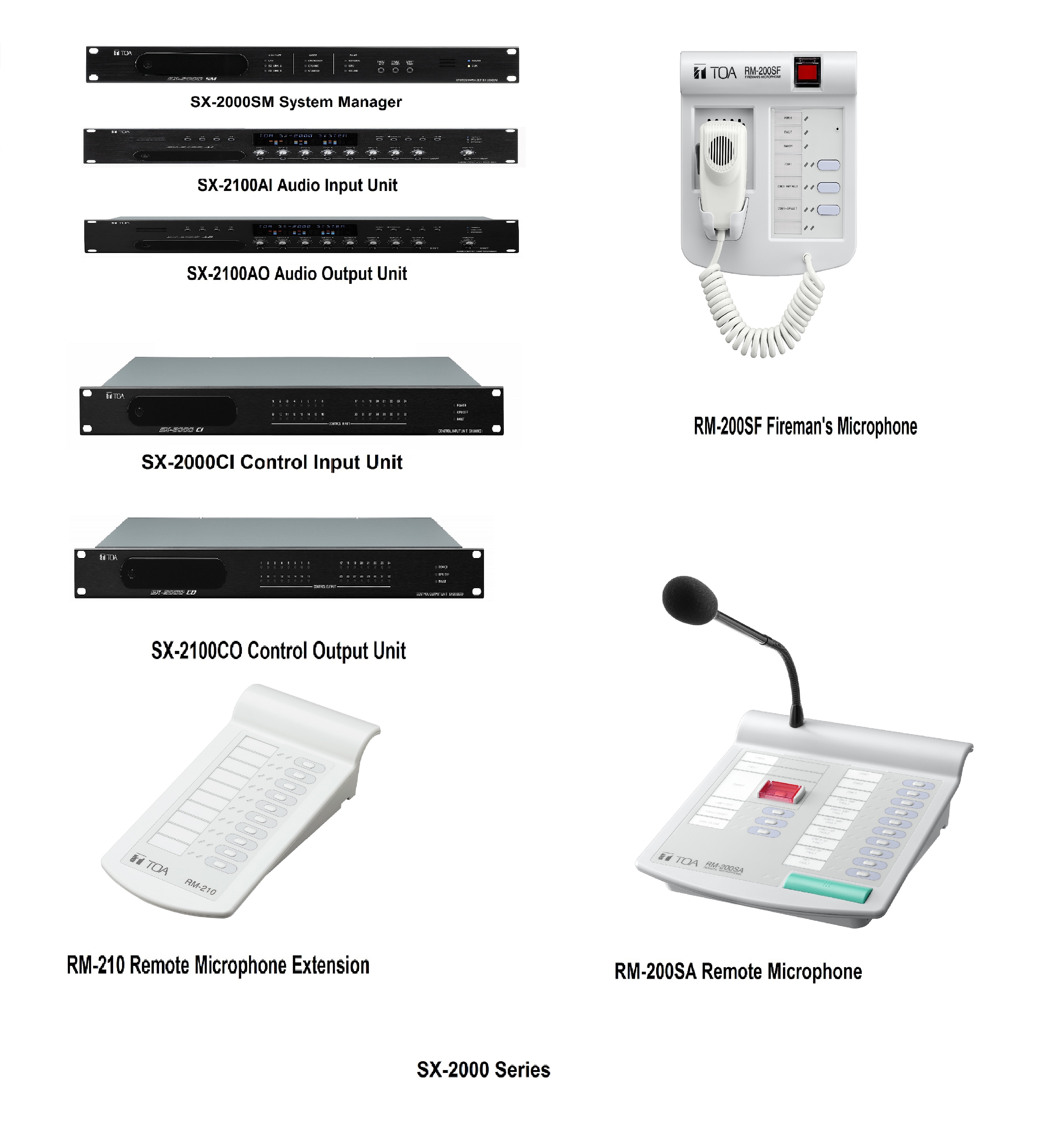

SX-2000SM System Manager

Power Source

Usable power supply unit: VX-200PS
24 V DC (operational range: 20 V - 40 V DC)
Two power inputs construction enables dual- redundant power supply.

Current Consumption

1.1 A or less (maximum value in the power operating range)
0.8 A or less (when operated on 24 V DC)

Indication/Operation

SX link access indicator: 2
LAN access indicator: 1
Mode indicator: 3 (EMERGENCY/STANDBY/ CPU OFF)
Failure indicator: 3 (GENERAL/CPU/SX LINK)
Power indicator: 1 (POWER)
Run indicator: 1 (RUN)
Failure control switch: 3 (ACK/RESET/LAMP TEST)

Network I/F

2 100BASE-TX circuits, RJ45 connector

Matrix System Specification

Bus: 16
Audio input: Max. 64 ch
Audio output: Max. 256 zones
Contact input: Max. 1416
Contact output: Max. 1416
Priority control: 512 steps
Event log: Up to 1,000 logs per file (up to 100 files available)
Failure log: Up to 100 logs per file (up to 100 files available)

Matrix System Configuration

Connectable SX-2100AI No.: Max. 8 units
Connectable SX-2000AO/2100AO No.: Max. 32 units
Connectable SX-2000CI No.: Max. 32 units
Connectable SX-2000CO No.: Max. 32 units
Connectable RM-200SA/SF No.: Max. 64 units (up to 8 RM-200SA per SX-2100AI)

Connection Cable/Device

Shielded Category 5 twisted pair cable (CAT5-STP)
(Connect SX-2100AI and SX-2000AO/2100AO via the switching hub specified by TOA.)
Note: This network must be made completely independent from other LAN.

Number of Cascaded Switching Hub

Up to 7

Maximum Cable Distance

100 m (between this unit and a Number of Cascaded Switching Hubs, or between Number of Cascaded Switching Hubs)

Network I/F

1 10BASE-T/100BASE-TX circuit (selectable by automatic recognition), RJ45 connector
for maintenance use

Network Protocol

TCP/IP

Connection Cable

Shielded Category 5 twisted pair cable for LAN (CAT5-STP)

Maximum Cable Distance

100 m (between this unit and a Switching Hub, or between a Switching Hub and a PC)

Input/Output Connector

Output: 2, RJ45 connector

Connection Cable

Shielded Category 5 twisted pair cable (CAT5-STP)
(1 pair of audio wire + 1 pair of control wire (CPU OFF) +
1 pair of control wire (system reset/standby) + 1 pair of connection check wire)

Maximum Cable Distance

Total length of analog audio link: 800 m

Usable Unit

VX-2000DS

Connector/Cable

2 interface, RJ45 Connector, Shielded Category 5 twisted pair cable (CAT5-STP)

Maximum Cable Distance

5 m

Power Source

Usable power supply unit: VX-200PS
24 V DC (operational range: 20 V - 40 V DC)
Two power inputs construction enables dual- redundant power supply.

Current Consumption

2.01 A or less (maximum value in the power operating range)
1.50 A or less (when operated on 24 V DC)
Note: But except current consumption of the external equipment of which power is supplied
from the unit.

Indication

18 alphanumeric characters, Level indication (8 inputs, monitor), Status indicators,POWER indicator, STANDBY indicator, CPU OFF indicator

Operation

Function button, Input level control, Monitor speaker volume control, ON/OFF switch,Operation button

Audio Input

8 inputs, module construction (max. 4 modules, modules optional)
monitoring possible using built-in speaker.

Audio Input Characteristic

Sampling frequency: 48 kHz

No. Of Connectable Remote Microphone

Max. 8

Power Feed to Remote Microphone

Possible for up to a total of 8A.

Network I/F

2 100BASE-TX circuits, RJ45 connector, decentralized installation possible

Connection Cable/Device

Shielded Category 5 twisted pair cable (CAT5-STP)
To be connected via the switching hub specified by TOA
Note:This network must be made completely independent from other LAN.

Maximum Cable Distance

100 m (32.81 ft) (between this unit and a switching hub)

Input/Output Connector

Input: 1 input, RJ45 connector/
Output: 1 output, RJ45 connector

Connection Cable

Shielded Category 5 twisted pair cable (CAT5-STP)
(1 pair of audio wire + 1 pair of control wire (CPU OFF) + 1 pair of control wire (system reset/standby) + 1 pair of connection check wire)

Maximum Cable Distance

Total length of analog link: 800 m (874.89 yd)

Control Output

16 inputs, no-voltage make contact input, open voltage: 40 V DC or less,
short-circuit current: 2 mA, photo coupler input, removable terminal block (16 pins)

Control Output

16 outputs, Form A contact: normally open (changeable to Form B contact:
normally closed), no-voltage make contact output, relay contact output (withstand voltage:
40 V DC, control current: 2 - 300 mA), removable terminal block (16 pins)

Operation Temperature

0 ℃to +40 ℃(32 ゜F to 104 ゜F)

Operation Humidity

35 % to 80 %RH (no condensation)

Finish

Panel: Aluminum, black, alumite
Case: Surface-treated steel plate

Dimensions

482 (W) 88.4 (H) 349 (D) mm (18.98" 3.48" 13.74")

Weight

7.2 kg (15.87 lb)

Accessory

Removable terminal plug (4 pins) x 1, Removable terminal plug (16 pins) x 2,
Rack mounting screw x 4

Option

Remote microphone interface module: SX-200RM
MIC/LINE input module: D-921E, D-921F, D-922E, and D-922F.
Stereo input module: D-936R
Note: Modules other than described above cannot be used.

Power Source

Usable power supply unit: VX-200PS
24 V DC (operational range: 20 V - 40 V DC)
Two power inputs construction enables dual-redundant power supply.

Current Consumption

1.7 A or less (maximum value in the power operating range)
1.2 A or less (when operated on 24 V DC)
Note: But except current consumption of the external equipment of which power is supplied
from the unit.

Indication

18 alphanumeric characters, Level indication (8 outputs, monitor), Status indicators,
Power indicator, Standby indicator, CPU OFF indicator

Operation

Function button, Output level control, Monitor speaker volume control, ON/OFF switch,
Operation button

Audio Output

8 outputs and standby AMP, 0 dB*, suitable load: 600 Ω or above, electronically-balanced,
RJ45 Connector
monitoring possible using built-in speaker

Audio Output Characteristic

Frequency response: 20 Hz - 20 kHz
Sampling frequency: 48 kHz
D/A converter: 24 bit

Connection Cable

Shielded Category 5 twisted pair cable (CAT5-STP)

Maximum Cable Distance

5 m (16.4 ft)

Usable Amplifier

VP-2064, VP-2122, VP-2241 or VP-2421 (VP-200VX is required for each amplifier.)

Audio Input

2 inputs, 0 dB*, 10 kΩ, electronically-balanced, RJ45 Connector

Audio Input Characteristic

Frequency response: 20 Hz - 20 kHz
Sampling frequency: 48 kHz
A/D converter: 24 bit

Control Input

2 inputs, no-voltage make contact input, open voltage: 12 V DC,
short-circuit current: 2 mA, photo coupler input

Connection Cable

Shielded Category 5 twisted pair cable (CAT5-STP)

Network I/F

2 100BASE-TX circuits, RJ45 connector, decentralized installation possible

Connection Cable/Device

Shielded Category 5 twisted pair cable (CAT5-STP)
To be connected via the switching hub specified by TOA
Note: This network must be made completely independent from other LAN.

Maximum Cable Distance

100 m (109.36 yd) (between this unit and a switching hub)

Input/Output Connector

Input: 1 input, RJ45 connector
Output: 1 output, RJ45 connector

Connection Cable

Shielded Category 5 twisted pair cable (CAT5-STP)
(1 pair of audio wire + 1 pair of control wire (CPU OFF) +
1 pair of control wire (system reset/standby) + 1 pair of connection check wire)

Maximum Cable Distance

Total length of analog link: 800 m (874.89 yd)

Power Source

Usable power supply unit: AD-011, AD-031B
24 V DC (operational range: 20 V - 40 V DC)
Two power inputs construction enables dual-redundant power supply.

Current Consumption

0.7 A or less (maximum value in the power operating range)
0.55 A or less (when operated on 24 V DC)

Indication

Control input indicator (32), Power indicator, CPU OFF indicator, FAULT indicator

Control Input

32 inputs, no-voltage make contact input, open voltage: 24 V DC,
short-circuit current: 2 mA, photo coupler input, removable terminal block (16 pins)

Surveillance Section for The Control Input Lines

Connection resistance to make the function inactive: 20 kΩ5 %
Connection resistance to make the function active: 10 kΩ5 %
Connector cable: Twisted pair cable (shielded type is recommended)
Maximum cable distance: 10 m (32.81 ft)

Input/Output Connector

Input: 1 input, Output: 1 output
RJ45 Connector

Connection Cable

Shielded Category 5 twisted pair cable (CAT5-STP)
(1 pair of data wire + 1 pair of control wire)

Maximum Cable Distance

800 m (874.89 yd)

Output Voltage

24 V DC 10 % or less

Maximum Feeding Current

100 mA

Connector

Removable terminal block (2 pins)

Operating Temperature

0 ℃to +40 ℃(32 ゜F to 104 ゜F)

Operating Humidity

35 % to 80 %RH (no condensation)

Finish

Panel: Aluminum, black, alumite
Case: Surface-treated steel plate

Dimensions

482 (W) 44 (H) 331.5 (D) mm (18.98 1.73" 13.05")"

Weight

3.6 kg (7.94 lb)

Accessory

Removable terminal plug (16 pins) …4, Removable terminal plug (4 pins) …1,
Removable terminal plug (2 pins) …1, Rack mounting screw …4

Output Voltage

24 V DC 10 % or less

Maximum Feeding Current

100 mA

Connector

Removable terminal block (2 pins)

Operating Temperature

0 ℃to +40 ℃(32 ゜F to 104 ゜F)

Operating Humidity

35 % to 80 %RH (no condensation)

Finish

Panel: Aluminum, black, alumite
Case: Surface-treated steel plate

Dimensions

482 (W) 44 (H) 331.5 (D) mm (18.98 1.73" 13.05")"

Weight

3.6 kg (7.94 lb)

Accessory

Removable terminal plug (16 pins) …4, Removable terminal plug (4 pins) …1,
Removable terminal plug (2 pins) …1, Rack mounting screw …4

Option

DC power supply panel: AD-011, AD-031B
Terminal unit: RM-200RJ

Power Source

Usable power supply unit: AD-011, AD-031B
24 V DC (operational range: 20 V - 40 V DC)
Two power inputs construction enables dual-redundant power supply.

Current Consumption

0.34 A or less (maximum value in the power operating range)
0.29 A or less (when operated on 24 V DC)

Indication

Control input indicator (32), Power indicator, CPU OFF indicator, FAULT indicator

Control Input

32 outputs, no-voltage make contact output, relay contact output
(withstand voltage: 40 V DC, control current: 2 mA to 300 mA),
removable terminal block (6 pins)

Input/Output Connector

Input: 1 input, Output: 1 output
RJ45 Connector

Connection Cable

Shielded Category 5 twisted pair cable (CAT5-STP)
(1 pair of data wire + 1 pair of control wire)

Maximum Cable Distance

800 m (874.89 yd)

Operating Temperature

0 ℃to +40 ℃(32 ゜F to 104 ゜F)

Operating Humidity

35 % to 80 %RH (no condensation)

Finish

Panel: Aluminum, black, alumite
Case: Surface-treated steel plate

Dimensions

482 (W) 44 (H) 331.5 (D) mm (18.98 1.73" 13.05")"

Weight

3.6 kg (7.94 lb)

Accessory

Removable terminal plug (16 pins) …4, Removable terminal plug (4 pins) …1,
Removable terminal plug (2 pins) …1, Rack mounting screw …4

Conductor diameter

Maximum Cable Distance

"%%c0.65 mm (%%c0.026)"""

160 m (175.04 yd)

" %%c0.9 mm (%%c0.035)"""

320 m (350.08 yd)

"%%c1.2 mm (%%c0.047)"""

570 m (623.58 yd)

" %%c0.9 mm (%%c0.035) AWG 16 3 pairs CPEV (2 pairs for DC and 1 pair for data)"""

640 m (700.16 yd)

"%%c1.2 mm (%%c0.047) AWG 16 3 pairs CPEV (2 pairs for DC and 1 pair for data)"""

800 m (875.20 yd)

Model

RM-200SF Fireman's Microphone

RM-200SA Remote Microphone

Power Source

24 V DC (operating range: 15 - 40 V DC, supplied from the audio input unit)

24 V DC (operating range: 15 - 40 V DC, supplied from the audio input
unit) or DC input power supple connector (when the optional AD-246
power supply unit used).
Usable DC power supply plug: 5.5 mm (0.22") outer diameter,
2.1 mm (0.08") inner diameter,
9.5 mm (0.37") long, and non-polarity type.

Current Consumption

240 mA or less

240 mA or less

Audio Output

0 dB*, transformer-balanced

0 dB*, 600 Ω, balanced

External Microphone Input

_

-40 dB*, 2.2 kΩ, unbalanced, mini jack, for electret condenser microphone
(phantom power supply: 3 V DC)

Distortion

1 % or less

1 % or less

Frequency Response

200 Hz - 15 kHz

100 Hz - 20 kHz

S/N Ratio

55 dB or more

60 dB or more

Microphone

Unidirectional dynamic microphone with talk key, AGC (ON/OFF switchable),
microphone element failure detectable by using a built-in small oscillator

Unidirectional electret condenser microphone with AGC (ON/OFF selectable)

Chime

_

Built inside (PCM sound source), monitoring possible using built-in speaker

Volume Control

Microphone volume control, Monitor speaker volume control

Microphone sensitivity control, Monitor speaker volume control,
Chime (adjustable using the software)

Connection Cable

Shielded CPEV cable (each one pair of audio wire, data wire, monitor/control wire,
and power supply wire) or Shielded Category 5 twisted pair cable (CAT5-STP),
M3 screw terminal

Main line: Shielded CPEV cable (1 pair of audio wire + 1 pair of data wire +
1 pair of monitor/control wire + 1 pair of supply wire) or
Shielded Category 5 twisted pair cable (CAT5-STP)
Branch line: Shielded Category 5 twisted pair cable (CAT5-STP),
RJ45 connector

Maximum Cable Distance

800 m (874.89 yd)

800 m (874.89 yd)

No. of Connectable Expansion

Max. 5 units

Max. 4 units

Monitor Speaker

Built inside

Built inside

Operation

Emergency key, Function keys, CPU switch, Reset switch

Function switch, Covered switch, Broadcast switch

Indication

Status indicators, Power indicator, Failure indicator, CPU indicator,
Selection indicators, Microphone indicator, Broadcast status indicator

Power indicator, Failure indicator, Function switch indicator,
Covered switch indicator, Broadcast switch indicator

Operating Temperature

0 ℃to +40 ℃(32 ゜F to 104 ゜F)

0 ℃to +40 ℃(32 ゜F to 104 ゜F)

Operating Humidity

35 % to 80 %RH (no condensation)

35 % to 80 % RH (no condensation)

Finish

ABS resin, blueish gray (PANTONE 538 or its equivalent)

ABS resin, blueish gray

Dimensions

200 (W) 215 (H) 95 (D) mm (7.87" 8.46" 3.74")

190 (W) 76.5 (H) 215 (D) mm (7.48" 3.01" 8.46")
(excluding microphone)

Weight

1.48 kg (3.26 lb) (with wall mounting bracket unit)

880 g (1.94 lb)

Accessory

EMC clamp…1, Wall mounting bracket unit…1, Wall mounting screw…2,
Box mounting screw…2

_

Option

Remote microphone extension: RM-210

Remote microphone extension: RM-210
Wall mounting bracket: WB-RM200
Electret condenser microphone: WH-4000A, YP-M101, YP-M301 etc.

Applicable Box

YS-11A

_

Model

RM-200RJ Terminal Unit

RM210 Remote Microphone Extension

Applied Voltage

40 V or less

20 mA max. (in terms of RM-200M's DC power input)
75 mA max. (in terms of DC power inputs of RM-200X and RM-200XF)
80 mA max. (in terms of DC power inputs of RM-200SA and RM-200SF)

Withstand Voltage

1 A

Connection by way of dedicated cable

Voltage Indicator

Monitor terminals: Terminal No. 7 (+) and terminal No. 8 (-),
extinguish voltage: 14 V or less, lighting voltage: 21 V or more,
indicator ON/OFF switchable

10

Connector

RJ45 Connector: 1

ABS resin, blueish gray (PANTONE 538 or its equivalent)

Terminal

M3 screw terminal (10 pins), distance between barriers: 6.62 mm (0.26")

110 (W) 76.5 (H) 215 (D) mm

Operating Temperature

35% to 80% RH (no condensation)

350 g

Finish

Surface-treated steel plate, black, paint

Extension cable ……1, Linkage bracket A ……2, Linkage bracket B ……1,
Screw for linkage bracket ……12

Dimensions

84 (W) 116 (H) 25.7 (D) mm (3.31" 4.57" 1.01")

RM-200M, RM-200SA, RM-200SF, RM-200X, RM-200XF

Weight

250 g

350 g
