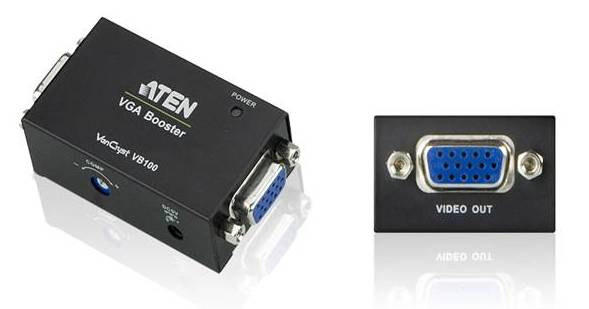

Aten Vancryst VGA VB100 Booster
Aten VGA VB100 Booster
Overview
The VB100 VGA Booster amplifies the VGA signal from a source device and transmits it to a display up to 70 meters away. The VGA booster extends the display distance without any signal loss; to bring you a crystal clear video display at a longer distance. The VB100 is built with a compact housing design for easy installation and manual gain control to improve image quality at different distances. The VB100 can be powered from the VGA source and has a built-in LED indicator for power. The VB100 supports hot plugging and requires no software for installation, making it an easy, compact, and affordable solution to extend your VGA display.
Features
-
Long distance transmission – up to 70 m
-
Adjustable video compensation – manually adjust signal strength to compensate for distance
-
Superior video quality – up to 1920 x 1200 (30 m); 1280 x 1024 (70 m)
-
Supports VGA, XGA, SVGA, UXGA, WUXGA, and multisync monitors
-
Supports wide screen formats
-
Supports hot-plugging
-
Compact housing
-
LED indication of power status and source device
-
Plug-and-play - no software installation required
Specifications
|
Connectors |
Video In |
1 x HDB-15 Female (Blue) |
|
Video Out |
1 x HDB-15 Female (Blue) |
|
|
Power Jack |
1 x DC Jack |
|
|
Switches |
Manual Gain Control |
1 x Knob |
|
LED |
Power |
1 (Green) |
|
Video |
Signal Range |
1920 x 1200@60Hz 30 m, |
|
Power Consumption |
DC 5V; 0.9W |
|
|
Environment |
Operating Temp. |
0-50 DegC |
|
Storage Temp. |
-20-60 DegC |
|
|
Humidity |
0 - 80% RH, Non-condensing |
|
|
Physical |
Housing |
Metal |
|
Weight |
56 g |
|
|
Dimensions |
6.88 x 3.53 x 2.06 cm |
|
Diagram
