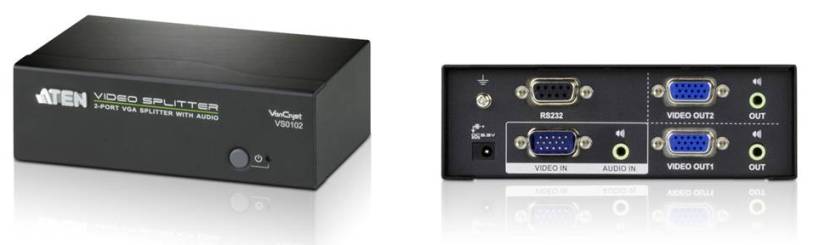

Aten VGA VS0102 2-Port VGA Splitter with Audio

Overview

The Aten VS0102 2-Port VGA Splitter with Audio is VGA splitter that allow a single VGA video & audio signal to be distributed to two output displays with independent stereo control. The splitter support up to 450MHz video bandwidth, which provides optimum video quality, supported by resolutions up to 1920x1440

Furthermore, for complete systems integration, serial control is standard through the VS0102 built-in RS-232 ports, which allow the splitter to be controlled through a high-end controller or PC.

The VS0102 is perfect for conference rooms, training facility & multi-display broadcasting, with cascadable support up to three levels allowing a single video signal to be sent across up to 8 video displayswhile sustaining the highest quality possible.

Features

• One video input to 2 video outputs

• Superior video quality – up to 1920 x 1440 @ 60Hz

• Supports up to 450MHz bandwidth for high performance video

• Long distance transmission – up to 65m *

• Supports VGA, SVGA, UXGA, WUXGA, and multisync

• EDID Expert – selects the optimum EDID settings for smooth power-up and highest quality display

• Expandable – provides up to 8 video displays

• Features RS-232 serial port for command controls **

• RS-232 chain control – use RS-232 commands to control cascaded devices via VGA cable

• Supports stereo audio

• Plug-and-play – no software installation required

Specifications

Display Connections			2
Connectors	Input	Video	1 x HDB-15 Male (Blue)
		Audio	1 x Mini Stereo Jack Female (Green)
	Output	Video	2 x HDB-15 Female (Blue)
		Audio	2 x Mini Stereo Jack Female (Green)
	RS-232 Port		1 x DB-9 Female (Black)
	Power		1 x DC Jack
Switches	Power		1 x Pushbutton
LEDs	Power		1 (Green / Orange)
Video			1920 x 1440 @ 60Hz
Power Consumption			DC5.3V, 0.8W
Environment	Operating Temp.		0 - 50 DegC
	Storage Temp.		-20 - 60 DegC
	Humidity		0 - 80% RH, Non-condensing
Physical Properties	Housing		Metal
	Weight		0.46 kg
	Dimensions (L x W x H)		13.00 x 7.61 x 4.40 cm

Diagram

---
