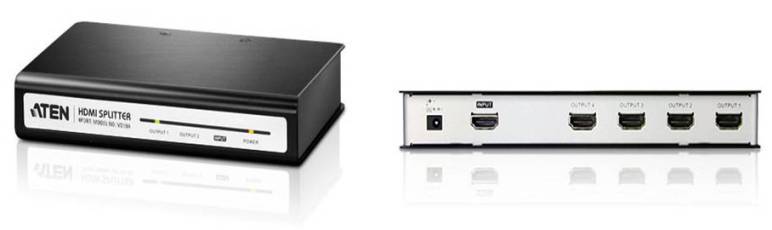

Aten HDMI VS184 4-Port HDMI Splitter

Overview

The VS184 HDMI Splitter is the perfect solution for anyone who needs to send one source of digital high definition video to four displays at the same time. It supports all HDMI-enabled equipment, such as DVD players, satellite set-top boxes and all HDMI displays.

Features

• Connects one HDMI A/V source to four HDMI displays at the same time

• Superior video quality – HDTV resolution of 480p, 720p, 1080i and 1080p (1920x1080); VGA, SVGA, SXGA, UXGA (1600x1200), WUXGA (1920x1200)

• Cascade distance: Source to Device -1.8m, Device to Device-15m,Device to Display-20m

• HDMI (Deep Colour)

• Supports Dolby True HD and DTS HD Master Audio

• Cascadable to 3 levels - provides up to 64 HDMI signals.

• Long distance transmission - 20 m (24 AWG)

• DDC compatible

• HDCP 1.1 compatible

• Signalling rates up to 2.25Gbits in support of 1080p display

• All-metal casing

• LED indication of display devices

• Plug-and-play - no software installation required

• Easy and affordable way to take your home theatre system to the next level, or upgrade presentations, training, and video broadcasts in a corporate, educational, or commercial setting

Specification

Display Connections			4
Connectors	Device	HDMI In	1 x HDMI Type A Female (Black)
	Display	HDMI Out	4 x HDMI Type A Female (Black)
	Power Jack		1 x DC Jack
LEDs	Power		1 (Orange)
	Input		1 (Green)
	Output 1		1 (Green)
	Output 2		1 (Green)
	Output 3		1 (Green)
	Output 4		1 (Green)
HDMI Resolution			HDTV resolutions up to 1080p, computer resolutions up to WUXGA(1920x1200)
Power Consumption			DC5.3V, 4.6W
Environment	Operating Temp.		0-50 DegC
	Storage Temp.		-20-60 DegC
	Humidity		0-80% RH, Non-condensing
Physical Properties	Housing		Metal
	Weight		0.47 kg
	Dimensions ( L x W x H )		20.00 x 8.00 x 2.50 cm

Diagram

---
