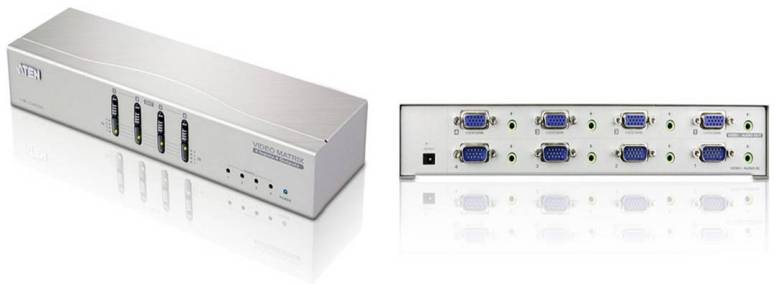

Aten Vancryst VGA VS0404 Video Matrix Switch
Aten VGA VS0404 4-Port Video Matrix Switch ( 4 inputs 4 outputs)
Overview
The VS0404 Video Matrix Switch allows video and audio from 4 computers to be routed to 4 monitors, projectors and speakers. Ideal for presentations and applications where information from multiple computers is being delivered to multiple destinations
Features
-
Each of the 4 video outs can toggle between Source 1 and Source 4 using front panel pushbuttons.
-
Audio enabled.
-
Duplicate and enhance video signals to up to 65 m (max.)*
-
Expandable: Cascade to ATEN's video splittersto support hundreds of video displays.
-
With up to 300 MHz Video Bandwidth.
-
OS Support: Windows 2000, Windows XP, Linux, Mac and Sun
Specifications
|
Display Connections |
4 |
||
|
Computer Connections |
4 |
||
|
Port Selection |
Pushbutton |
||
|
Connectors |
Input |
Vdieo |
4 x HDB-15 Male (Blue) |
|
Audio |
4 x Mini Stereo Jack Female (Green) |
||
|
Output |
Vdieo |
4 x HDB-15 Female (Blue) |
|
|
Audio |
4 x Mini Stereo Jack Female (Green) |
||
|
Power |
1 x DC Jack (Black) |
||
|
Switches |
Power |
4 x Pushbutton |
|
|
LEDs |
Power |
1 (Blue) |
|
|
Activity / Source |
4 (Green) |
||
|
Input |
1 |
4 (Green) |
|
|
2 |
4 (Green) |
||
|
3 |
4 (Green) |
||
|
4 |
4 (Green) |
||
|
Video |
1920 x 1440 @ 60Hz |
||
|
Video Bandwidth |
300 MHz |
||
|
Sync Range |
Sync Positive/Negative |
||
|
Signal Range |
65m (210') |
||
|
Power Consumption |
DC 5.3V ,7.16W (Max.) |
||
|
Environment |
Operating Temp. |
0-50˚C |
|
|
Storage Temp. |
-20-60˚C |
||
|
Humidity |
0-80% RH, Non-condensing |
||
|
Physical |
Housing |
Metal |
|
|
Weight |
0.89kg |
||
|
Dimensions ( L x W x H ) |
26.00 x 7.50 x 4.50 cm |
||
Diagram
