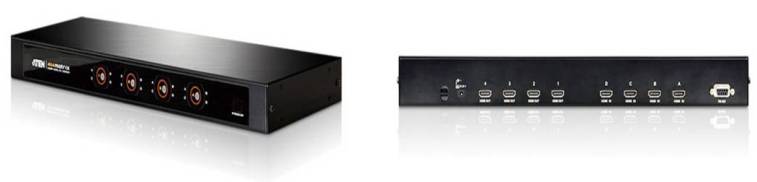

Aten HDMI VM0404H Matrix Switch

Overview

The VM0404H is a 4x4 HDMI Matrix Switch that provides a convenient way to route high definition video and audio from any of four HDMI sources to any of four HDMI displays. The VM0404H allows you to connect four HDMI devices (such as an HD camcorder or satellite box, HD-DVD player, hi-def Blu-ray player, home theatre PC, stand-alone streaming media player, or gaming console) to four HDMI monitors, displays, projectors or TVs at the same time.

Features

• Connects any of four HDMI sources to any of four HDMI displays

• Toggle between HDMI sources and displays using remote control or front panel pushbuttons

• Superior video quality – HDTV resolutions of 480p, 720p,1080i, 1080p (1920x1080); VGA, SVGA, SXGA, UXGA (1600x1200), and WUXGA (1920 x 1200)

• HDCP 1.1 compatible

• Consumer Electronics Control (CEC) allows interconnected HDMI devices to communicate and respond to one remote control

• HDMI (3D, Deep Colour)

• Supports Dolby True HD and DTS HD Master Audio

• Up to 60 Hz refresh rate

• Long-distance transmission – up to 20 m (24 AWG)

• Built-in bi-directional RS-232 serial remote port for high-end system control

• Power On Detection – if one HDMI source is powered off, the VM0404H will automatically switch to the next powered-on source

• DDC compatible

• Signalling rates up to 2.25 Gbits in support of 1080p display

• All-metal casing

• Easy and affordable way to add four HDMI inputs to your multiscreen home theatre system

• Rack Mountable

Specification

Display Connections	Direct		4
HDMI Input Connections			4
Connectors	Device	HDMI In	4 x HDMI Type A Female (Black)
	Display	HDMI Out	4 x HDMI Type A Female (Black)
	RS-232 Port		1 x DB-9 Female (Black)
	Power		1 x DC Jack
Switches	Port Selection		4 x Pushbuttons
LEDs	Selected		16 (Green)
Video Resolution			HDTV resolutions up to 1080p; computer resolutions up to WUXGA (1920x1200)
Power Consumption			DC5.3V, 9W
Environment	Operating Temp.		0-50 DegC
	Storage Temp.		-20-60 DegC
	Humidity		0-80% RH, Non-condensing
Physical Properties	Housing		Metal
	Weight		1.86 kg
	Dimensions ( L x W x H )		43.20 x 15.40 x 4.40 cm

Diagram

---
