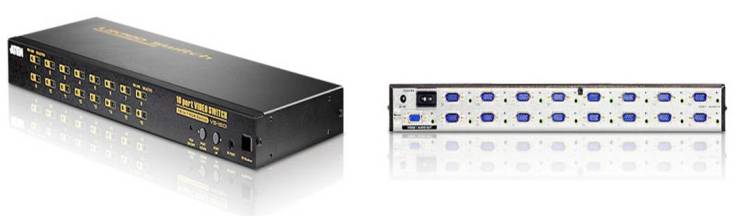

Aten Vancryst VGA VS1601 Video Switch
Aten VGA VS1601 16-Port Video Switch
Overview
The VS1601 Video Switch is a control unit that allows you to conveniently display the video output of sixteen separate computer systems on a single monitor, or via a multimedia projector. It features stereo audio support; easy computer selection via pushbuttons; intelligent infrared (IR) remote control.
Features
-
Displays the video output of sixteen separate computers on a single monitor or projector.
-
Supports up to 250 MHz bandwidth.
-
High resolution video up to 1920 x 1440 @60Hz; DDC; DDC2; DDC2B.
-
Supports VGA, SVGA, XVGA and MultiSync monitors.
-
Stereo audio support.
-
External IR receiver (1.8m) for maximum efficiency and convenience.
-
Fast and convenient computer selection via push buttons or infrared (IR) remote control.
-
Maintains high video resolution over long distances.
-
Duplicates and enhances video signal up to 65m (Max.)
-
Designed for enterprise use - 1U in size and rack mountable.
Specification
|
Computer Connections |
16 |
|
|
Port Selection |
Pushbutton, IR Remote Control |
|
|
Connectors |
Video In |
16 x HDB-15 Male (Blue) |
|
Audio In |
16 x Mini Stereo Jack Female (Green) |
|
|
Video Out |
1 x HDB-15 Female (Blue) |
|
|
Audio Out |
1 x Mini Stereo Jack Female (Green) |
|
|
IR |
1 x Mini Stereo Jack Female (Black) |
|
|
Power |
1 x DC Jack |
|
|
Switches |
Power |
1 x Rocker |
|
Port (Up) |
1 x Pushbutton |
|
|
Port (Down) |
1 x Pushbutton |
|
|
LEDs |
On Line /Selected |
16 (Orange/Green) |
|
VGA Display |
1 (Blue) |
|
|
Video |
1920 x 1440 @ 60Hz (max); DDC2B |
|
|
Signal Range |
65 m |
|
|
Power Consumption |
DC5V, 2.5W |
|
|
Environment |
Operating Temp. |
0-50 DegC |
|
Storage Temp. |
-20-60 DegC |
|
|
Humidity |
0-80% RH, Non-condensing |
|
|
Physical Properties |
Housing |
Metal |
|
Weight |
2.60 kg |
|
|
Dimensions |
43.30 x 16.00 x 4.40 cm |
|
Diagram
