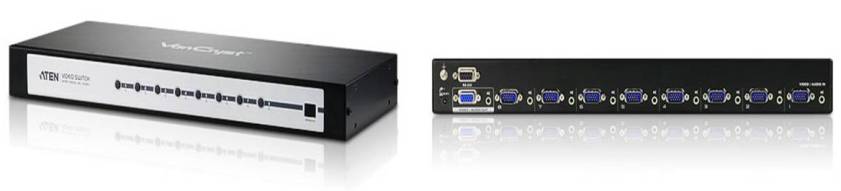

Aten VGA VS0801 8-Port Video Switch

Overview

With eight VGA/Audio input ports, the VS0801 8-port Video Switch allows you to conveniently display the video output of eight separate computer systems on any monitor or multimedia projector. Rack mountable in only 1U of space, and with full audio support, the VS0801 is perfect for server room applications that require the monitoring of high quality video and audio output.

Features

• Displays the video output of up to eight computers on a single display

• Quick and easy switching between VGA/Audio sources via front panel pushbuttons or IR remote control

• Supports stereo audio

• Built-in bi-directional RS-232 serial port for high-end system control

• Supports up to 300 MHz bandwidth

• Superior video quality - 2048x1536@60Hz; DDC; DDC2; DDC2B

• Supports all analog displays - VGA, SVGA, UXGA, WUXGA, and multisync

• Plug-and-play - no software installation required

• All-metal casing provides durability and protection

• RackMountable(1U size)

Specification

Display Connections			1
Connectors	Device	Video In	8 x HDB-15 Male (Blue)
		Audio In	8 x Mini Stereo Jack Female (Green)
	Display	Video Out	1 x HDB-15 Female (Blue)
		Audio Out	1 x Mini Stereo Jack Female (Green)
	RS-232 Port		1 x DB-9 Female (Black)
	Power		1 x DC Jack
LEDs	Selected		8 (Green)
Video			2048 x 1536@60 Hz; DDC2B
Power Consumption			DC5.3V, 1.01W
Environment	Operating Temp.		0-50 DegC
	Storage Temp.		-20-60 DegC
	Humidity		0-80% RH, Non-condensing
Physical Properties	Housing		Metal
	Weight		2.10 kg
	Dimensions ( L x W x H )		43.20 x 15.40 x 4.40 cm
