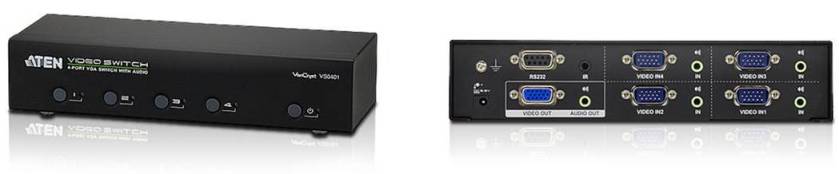

Aten VGA VS0401 4-Port VGA Switch with Audio

Overview

The VS0401 4-Port VGA Switch with Audio allows you to connect four audio/video source computers to a single monitor or projector with full audio and quickly switch between the devices for use.

Features

• Displays the video output of four computers on a single monitor or projector

• Quick and easy switching between VGA/Audio sources via front panel pushbuttons, RS-232, or IR remote control

• Superior video quality – up to 1920 x 1440

• Long-distance transmission – up to 65 m

• Supports VGA, SVGA, UXGA, WUXGA and multisync monitors

• Video DynaSync™ – Exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports

• Built-in bi-directional RS-232 serial port for high-end system control **

• RS-232 Control:

  • Power On Detection – if one VGA source is powered off, the VS0401 will automatically switch to the next powered-on

source

• Auto Switching – sets the priority for auto switching to a connected port

• Pushbutton Lock – locks use of the front panel pushbuttons

• Supports stereo audio

• DDC compatible

• Supports up to 300MHz bandwidth for optimal video quality

• LED indication of power status and source device

• All-metal casing provides durability and protection

• Plug-and-play – no software installation required

Specification

Display Connections			4
Connectors	Input	Video	4 x HDB-15 Male (Blue)
		Audio	4 x Mini Stereo Jack Female (Green)
	Output	Video	1 x HDB-15 Female (Blue)
		Audio	1 x Mini Stereo Jack Female (Green)
	RS-232 Port		1 x DB-9 Female (Black)
	IR Input port		1 x Mini Stereo Jack Female (Black)
	Power		1 x DC Jack
Switches	Port Selection		4 x Pushbuttons
	Power		1 x Pushbuttons
LEDs	Selected		4 (Green)
	Power		1 (Green / Orange)
Video			1920 x 1440 at 30 m 1280 x 1024 at 65 m
Power Consumption			DC5.3V, 0.55W
Environment	Operating Temp.		0-50 DegC
	Storage Temp.		-20-60 DegC
	Humidity		0–80% RH, Non-condensing
Physical Properties	Housing		Metal
	Weight		0.66 kg
	Dimensions (L x W x H)		20.00 x 7.61 x 4.40 cm

Diagram

---
