PRODUCTS DETAIL_

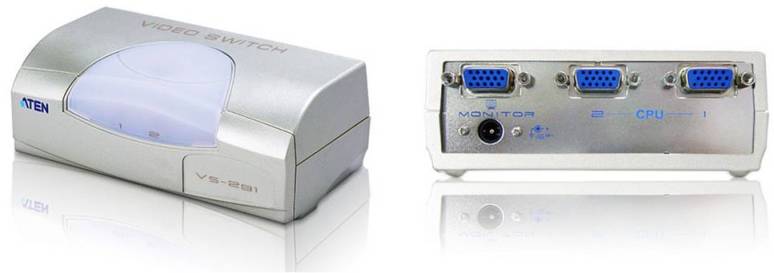

Aten Vancryst VGA VS291 Video Switch
Aten VGA VS291 2-Port Video Switch
Overview
The VS291 is a video switch with 2 ports. It allows 2 independent computers to display their video outputs on a single monitor. Therefore, users will not need to buymonitorsfor each computer additionally.
Features
-
Displays the video output of two computers on a single monitor or projector.
-
Computer selection via pushbutton switch.
-
Electronic switching for greater reliability and durability.
-
Easy Installation - No Software Required.
-
Long distance transmission - up to 10m
-
High resolution video - up to 1920 x 1440.
-
DDC, DDC2, DDC2B Compatible.
-
Supports VGA, XGA. SVGA, UXGA and Multisync monitors.
-
OS Support: Windows 2000, Windows XP, Linux, Mac and Sun
Specifications
|
Computer Connections |
2 |
|
|
Port Selection |
Pushbutton |
|
|
Connectors |
Video In |
2 x HDB-15 Female (Blue) |
|
Video Out |
1 x HDB-15 Female (Blue) |
|
|
Power |
1 x DC Jack |
|
|
Switches |
Port |
1 x Pushbutton |
|
LEDs |
Selected |
2 |
|
Video |
1920 x 1440 @ 60Hz |
|
|
Signal Range |
Up to 10m (33') |
|
|
Power Consumption |
DC9V, 0.9W (Max.) |
|
|
Environment |
Operating Temp. |
0-50 DegC |
|
Storage Temp. |
-20-60 DegC |
|
|
Humidity |
0-80% RH, Non-condensing |
|
|
Physical |
Housing |
Plastic/Metal |
|
Weight |
0.15 kg |
|
|
Dimensions ( L x W x H ) |
12.00 x 6.50 x 4.40 cm |
|
Diagram
