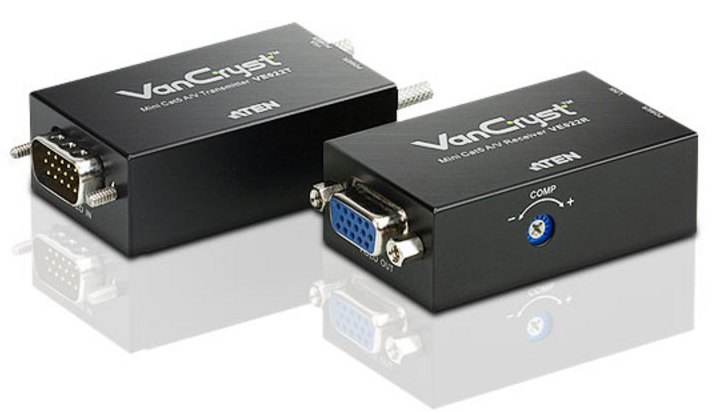

Aten VGA VE022 Mini Cat 5 A/V Extender

Overview

The VE022 Mini Cat 5 A/V Extender allows you to extend the distance between your video/audio source and display devices by as much as 150 meters, using a Cat 5e cable, providing an easy way to replace heavy and expensive VGA cables. With hot-plugging support, you can quickly add or remove the VE022 transmitter/receiver connected to the source/display device without having to power down devices.The VE022 Mini Cat 5 A/V Extender is a compact, convenient and economical addition to your video/audio setup.

Features

• Uses Cat 5e cable to extend audio and video transmission up to 150 m

• Superior video quality – screen resolutions include 1920 x 1200@60Hz(30 m), 1600 x 1200@60Hz(100 m) and 1280 x 1024@60Hz(150 m)

• Adjustable Gain Control lets you manually adjust signal strength to compensate for distance

• Audio enabled (mono)

• No external power supply needed for transmitter

• Convenient docking interface for mounting the VE022 on the display device.

• Eliminates the need for bulky VGA cables

• Easy installation

Specification

Function		VE022T	VE022R
Connectors	Video In	1 x HDB-15 Male (Black)	N/A
	Video Out	N/A	1 x HDB-15 Female (Blue)
	Audio In	1 x Audio Jack Female (Green)	N/A
	Audio Out	N/A	1 x Audio Jack Female (Green)
	Unit to Unit	1 x RJ-45 Female
	Power	1 x DC Jack
LEDs	Power	1 (Green)
	VGA Power	1 (Green)	N/A
	Link	N/A	1 (Orange)
Switch	Video Compensation Tuner	N/A	1 x Knob
Video		1920 x 1200 @ 60 Hz at 30 m 1600 x 1200 @ 60 Hz at 100 m 1280 x 1024 @ 60 Hz at 150 m
Cable Distance		150 m
Power Consumption		DC5V, 0.44 W	DC5V, 0.88 W
Environment	Operating Temp.	0 -50 DegC
	Storage Temp.	-20 - 60 DegC
	Humidity	0-80% RH, Non-condensing
Physical Properties	Housing	Metal
	Weight	58 g	54 g
	Dimensions (L x W x H)	6.35 x 3.53 x 2.06 cm	6.42 x 3.53 x 2.06 cm
