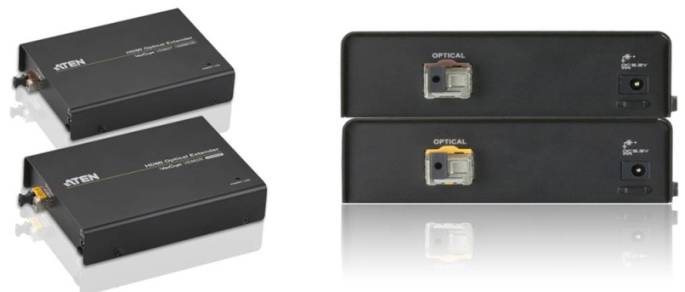

Aten HDMI VE882 Optical Extender

Overview

The VE882 is an Optical HDMI Extender that overcomes the length restriction of standard HDMI cables by using optical fibre to send high definition audio and video signals over large distances.

Features

• Extends the transmission range of HDMI, IR and RS-232 signals using one fibre optic cable

• Very long distance transmission–up to 600m

• HDMI (3D, Deep Color), HDCP compatible–signalling rates up to 3.125 Gbits

• Superior video quality–up to 1080p@60Hz

• Uses one fibre optic cable to connect the local and remote units

• Supports wide screen formats

• Built-in 8KV/15KV ESD protection

• Features RS-232 serial port for connecting peripherals such as touch screens, barcode scanners, etc.

• Supports bi-directional IR signal transmission, one way at a time

• Rack-mountable

• Hot-pluggable

Specifications

Function		VE882T	VE882R
Connectors	HDMI In	1 x HDMI Type A Female (Black)	N/A
	HDMI Out	N/A	1 x HDMI Type A Female (Black)
	Optical In/Out	1 x LC Simplex Connector (SFP) (Bi-directional)
	RS-232	1 x Terminal Block, 3 pole
	IR	1 x mini stereo jack (Black)
	Power	1 x DC Jack (Black)
Fiber Optics	Operating distance *	600 m with single mode (SM) fiber
	Wavelength	1310/1550 nm for SM
	Data rate	Single fibre: 1080p/60Hz (24-bits, 3.125G bps )
LEDs	Power/Link	1 (Green)
Power Consumption		DC5.3V, 5.6W	DC5.3V, 5.1W
Environment	Operating Temp.	0–50C
	Storage Temp.	-20–60C
	Humidity	0–80% RH, Non-condensing
Physical Properties	Housing	Metal
	Weight	0.42 kg
	Dimensions (L x W x H)	14.17 x 10.30 x 3.12 cm

Diagram

---
