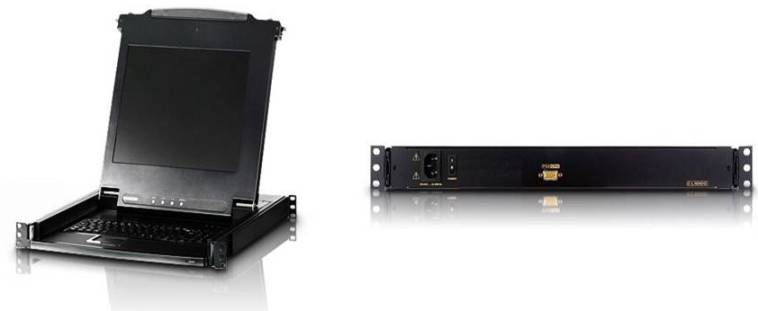

Aten CL1000 LCD KVM Switch
Aten CL1000 SlideawayTMLCD Console
Overview
The CL1000 is a LCD KVM console that serves as the front-end for standard KVM switches. The CL1000 features an integrated 17" LCD panel, full keyboard, and touchpad in a 1U, rack-mountable, Slideaway™ housing. Users who already have a switch can take advantage of the space saving and efficiency benefits of the CL1000 LCD KVM console without the unnecessary expense of having to purchase a KVM switch.
Features
-
Integrated KVM console with 17" LCD monitor - in a Slideaway™ housing
-
LCD module rotates up to 115 degrees for a more comfortable viewing angle
-
Slideaway™ housing is less than 1U - with top and bottom clearance for smooth operation in a 1U high system rack
-
Compatible with most PS/2 KVM Switches
-
Internal power built in
-
Adjustable depth to fit within a rack
-
High video resolution:
-
Up to 1280 x 1024 @75Hz
-
Supports DDC, DDC2, DDC2B
-
-
DDC emulation - VGA settings of every connected computer are automatically adjusted for optimal output to the LCD monitor
-
Keyboard Language support: English(US); English(UK); German; German(Swiss); French; Spanish; Traditional Chinese; Japanese; Korean; Swedish; Italian; Russian; Hungarian
-
Improved design - single person installation (optional)
-
Multiplatform support: Windows 2000/XP/Vista, Linux and FreeBSD
|
Rack Mounting Kit |
Depth |
|
2X-010G (Long/Optional) |
68cm - 100cm |
|
Short (Standard) |
42cm - 72cm |
|
Easy Installation |
Depth |
|
2X-012G (Long/Optional) |
68cm - 105cm |
|
2X-011G (Short/Optional) |
42cm - 70cm |
Specification
|
Connectors |
KVM Ports |
Keyboard/ |
1 x SPHD Female (Yellow) |
|
Power |
1 x 3-prong AC Socket |
||
|
Switches |
LCD Adjustment |
4 x Pushbuttons |
|
|
Reset |
1 x Semi-recessed Pushbutton |
||
|
Power |
1 x Rocker |
||
|
LEDs |
Power |
1 (Dark Green) |
|
|
Num Lock |
1 (Green) |
||
|
Caps Lock |
1 (Green) |
||
|
Scroll Lock |
1 (Green) |
||
|
Emulation |
Keyboard / Mouse |
PS/2 |
|
|
Video |
17" LCD |
1280 x 1024; DDC2B |
|
|
I/P Rating |
100 - 240 VAC; 50/60 Hz; 1A |
||
|
Power Consumption |
17" LCD |
120V/21W; 230V/24W |
|
|
Environment |
Operating Temp. |
0-40˚C |
|
|
Storage Temp. |
-20-60˚C |
||
|
Humidity |
0-80% RH, Non-condensing |
||
|
Physical Properties |
Housing |
Metal+Plastic |
|
|
Weight |
17" LCD |
12.30kg |
|
|
Dimensions |
53.40 x 48.00 x 4.40 x cm (19"/1U) |
||
