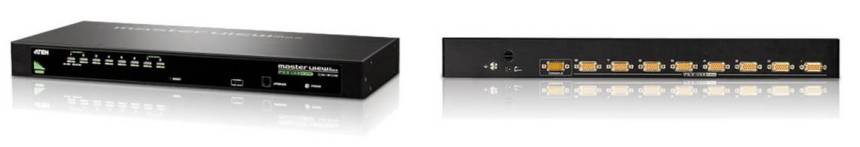

Aten CS1308 Rack KVM Switch
Aten CS1308 8-Port PS/2 - USB KVM Switch
Overview
The CS1308 KVM switch allows access and control up to 64 computers from a single console (keyboard,mouse, and monitor). As many as 8 additional switches can be cascaded bringing the total number of connected computers to 64 computers that can be controlled from a single keyboard-monitor-mouse console. The switch supports both USB and PS/2 connections for the console and computers.
Features
-
One USB-PS/2 console controls 8 computers
-
Cascade up to 2 levels - control up to 64 computers
-
Dual Interface - supports computers with PS/2 or USB keyboards and mice
-
Multiplatform support - Windows 2000/XP/Vista, Linux, Mac, and Sun
-
Video DynaSync™ - Exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports
-
Supports USB keyboards for PC, Mac and Sun
-
Auto PS/2 and USB interface detection
-
USB or PS/2 keyboard and mouse emulation - computers boot even when the console focus is elsewhere
-
Superior video quality - up to 2048 x 1536; DDC2B
-
Computer selection via front panel push buttons, hotkeys and multilingual on-screen display (OSD) menu
-
Two level password security - only authorized users view and control computers; up to four users and an administrator with a separate profile for each
-
Auto Scan feature for monitoring user-selected computers
-
Hot pluggable - add or remove computers without having to power down the switch
-
Buzzer on/off via hotkey and OSD
-
Firmware upgradeable
-
No software installation required
-
Designed for desktop or rack mount (19" system rack, 1U)
Specifications
|
Computer Connections |
Direct |
8 |
|
|
Max. |
64 (via Cascade) |
||
|
Port Selection |
OSD, Hotkeys, Pushbuttons |
||
|
Connectors |
Console Port |
Keyboard |
1 x SPHD-18 Male (Yellow) |
|
Video |
|||
|
Mouse |
|||
|
KVM Ports |
Keyboard |
8 x SPHD-15 Female (Yellow) |
|
|
Video |
|||
|
Mouse |
|||
|
FW Upgrade |
1 x RJ-11 Female (Black) |
||
|
Power |
1 x DC Jack |
||
|
Switches |
Port |
8 x Pushbutton |
|
|
FW Upgrade |
1 x Slide |
||
|
LEDs |
On Line |
8 (Orange) |
|
|
Selected |
8 (Green) |
||
|
Power |
1 (Dark Green) |
||
|
Emulation |
Keyboard/Mouse |
PS/2, USB |
|
|
Video |
2048 x 1536; DDC2B |
||
|
Scan Interval |
1-255 Seconds |
||
|
Power Consumption |
DC 5.3 V; 5 W |
||
|
Environment |
Operating Temp. |
0-50˚C |
|
|
Storage Temp. |
-20-60˚C |
||
|
Humidity |
0-80% RH, Non-condensing |
||
|
Physical Properties |
Housing |
Metal |
|
|
Weight |
1.89 kg |
||
|
Dimensions |
43.30 x 16.00 x 4.40 cm |
||
Diagram
