PRODUCTS DETAIL_

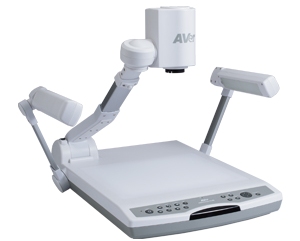

Aver Platform AverVision PL50
Features
-
Large shooting area (400 x 300 mm) for easily capturing oversized documents and 3D objects
-
Built-in memory, SDHC card slot and USB OTG port for extensiveimage storage
-
HDMI output support for full HD imaging and simultaneous audio/video playback
-
Built-in MIC for simple audio recording
-
Expansive connectivity, including 2 VGA inputs, 2 VGA outputs, HDMI output and RS-232
-
Approximately 20,000 hours of life for the dual side LED lamp arms and embedded light box
-
Presentation tools(spotlight & visor features), picture-in-picture and split screen ideal for step-by-step presentations and making comparisons
-
Handy A+ Suite visualizer software featuring A+ Plug-in for PowerPoint and AVerVision 4
Specification
|
Product Specifications |
|
|---|---|
|
Image Sensor |
1/3” CMOS colorimage sensor |
|
Total Pixels |
5M pixels |
|
Output Resolution |
Full HD1080p (1920 x 1080) |
|
TV Lines |
700 |
|
Zoom |
240X total zoom (16X optical zoom + 15X digital zoom) |
|
Frame Rate |
30fps (max.) |
|
Focus |
Auto / manual |
|
Shooting Area |
A4 portrait (400 x 300 mm) |
|
Image Rotation |
Electronic rotation 0 / 90 / 180 / 270 (Degree) |
|
Camera Head Rotation |
-125 ~ 90 vertical & 90 horizontal (Degree) |
|
Recording |
Yes (to SDHC card orUSB flash drive) |
|
Onboard Annotation |
Yes (1024 x 768) |
|
Internal Storage |
Built-in memory (80 images @ 5M; 240 images @ XGA) |
|
External Storage |
SDHC (32GB max.) / USB flash drive (64GB max.) |
|
Image Effects |
Color / b&w / negative / mirror / freeze |
|
Image Adjustments |
Auto / manual |
|
Presentation Tools |
Yes (Spotlight & Visor functions) |
|
Split Screen |
Yes (vertical & horizontal) |
|
Picture-In-Picture |
Yes |
|
Display Mode |
Sharp / graphics / motion / microscope / macro / infinite |
|
Capture Mode |
Single / continuous |
|
User Profiles |
Up to 3 |
|
Timer |
Yes |
|
Flicker Filter Control |
Yes (50/60Hz) |
|
Remote Control |
Yes |
|
Light Source |
2 LED arm lamps |
|
Light Box |
Embedded (329 x 265 mm) |
|
HDMI Output |
Yes |
|
Rgb I/O |
2 in; 2 out (15-pins D-sub, pass through) |
|
Composite Video Output |
Yes (NTSC or PAL) |
|
RS-232 Port |
Yes |
|
Mini USB 2.0 Port |
Yes (PC camera / built-in image download) |
|
USB 2.0 Port |
Yes (type A) |
|
Audio Input |
Built-in MIC; MIC in (3.5 mm jack, pink) |
|
Audio Output |
Audio out (3.5 mm jack, green) |
|
Dimensions (W X H X D) |
Operating: 630 x 505 x 510 mm |
|
Net Weight |
6.5kg (14.33lbs) |
|
Power Source |
Ac 100v~240v, 50/60hz |
Accessories
Standard:
-
√ Remote Control
-
√ Dust Cover
Optional:
-
√ Microscope adapter
-
√ Anti-Glare Sheet
