Specification

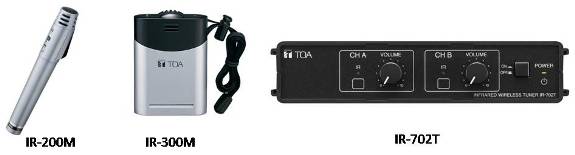

IR-200M

IR-300M

IR-702T

Maximum Input sound Pressure

120dB SPL

-

Input Sensitivity Adjustment

-

Adjustment range: -9dB to 0dB

-

Frequency Response

-

100Hz – 12KhZ

-

Input

-

External microphone input

-

Power source

-

AC mains 50/60Hz

Receiving / Carrier Frequency

7m

5m

-

Power Requirement

Channel A: 3.1000MHz, Channel B: 3.350MHz

Receiver Sensitivity

-

S/N ratio over 50dB

S/N Ratio

-

61dB or more

Infrared Receiver Input

-

75Ω, BNC jack x 2

Output

-

Channel A and B: -10dB

Finish

Control Section: ABS resin, metallic gray, 50% gloss, paint Filter Section: Polycarbonate, optional cut filter

Case: ABS resin, black

Dimensions

Φ37 x 241.8mm

64(W) xx 91.3(H) x 27.3(D)mm

210(W) x 44(H) x 210.9(D)mm

Weight

170g (with batteries)

130g (with batteries and trip)

630g (unit only)
