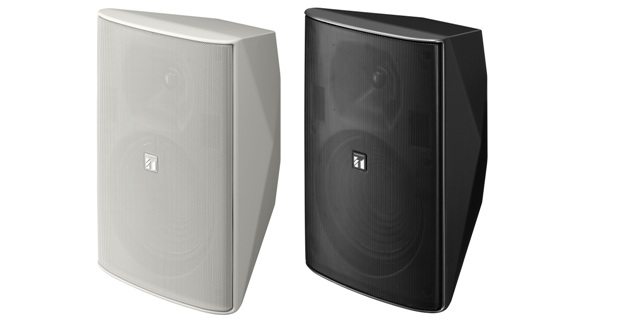

TOA Wide Dispersion Box Speaker
F-1000 & F-1300 Series Wide Dispersion Box Speaker
|
Specifications |
F-1000B / F-1000W |
F-1000BT / F-1000WT |
F-1000BTWP / F-1000WTWP |
F-1300B / F-1300W |
F-1300BT / F-1300WT |
F-1300BTWP / F-1300WTWP |
||
|---|---|---|---|---|---|---|---|---|
|
Enclosure Type |
Base-reflex type |
|||||||
|
Power Handling Capacity |
90W (continuous program) |
- |
150W (continuous program) |
30W |
||||
|
Rated Input |
6W |
10W |
6W |
|||||
|
Rated Impedance |
8Ω |
8Ω
100 V line: 670 Ω (15W), 2kΩ (5W), 3.3kΩ (3W), 10kΩ (1W) |
100 V line: 670 Ω (15W), 2kΩ (5W), 3.3kΩ (3W), 10kΩ (1W) |
8Ω |
8Ω
100 V line: 330 Ω (30W), 1kΩ (10W), 3.3kΩ (3W), 10kΩ (1W) |
100 V line: 330 Ω (30W), 1kΩ (10W), 3.3kΩ (3W), 10kΩ (1W) |
||
|
Sound Pressure Level (1W, 1m) |
87dB |
90dB |
||||||
|
Frequency Response |
85-20,000Hz |
80-20,000Hz |
||||||
|
Directivity Angle |
Horizontal:90degree Vertical: 90degree |
Horizontal:110degree Vertical: 100degree |
||||||
|
IP Code |
- |
IP-X4 |
- |
IP-X4 |
||||
|
Finish |
Enclosure: HIPS resin Punched net: Surface-treated steel plate |
|||||||
|
Colour |
Black/White |
|||||||
|
Dimensions |
130(W) x 202(H) x 131(D)mm |
162(W) x 250(H) x 161(D)mm |
||||||
|
Weight |
1.8kg |
2kg |
3.1kg |
3.6kg |
||||
|
Specifications |
F-2000B / F-2000W |
F-2000BT / F-2000WT |
F-2000BTWP / F-2000WTWP |
||
|---|---|---|---|---|---|
|
Enclosure Type |
Base-reflex type |
||||
|
Power Handling Capacity |
150W (continuous program) |
- |
|||
|
Rated Input |
- |
60W |
|||
|
Rated Impedance |
8Ω |
8Ω
100 V line: 170 Ω (60W), 330Ω (30W), 670Ω (15W), 3.3kΩ (3W) |
100 V line: 170 Ω (60W), 330Ω (30W), 670Ω (15W), 3.3kΩ (3W) |
||
|
Sound Pressure Level (1W, 1m) |
92dB |
||||
|
Frequency Response |
65-20,000Hz |
||||
|
Directivity Angle |
Horizontal:110degree Vertical: 100degree Horizontal:80degree Vertical: 80degree (with horn adapter) |
||||
|
IP Code |
- |
IP-X4 |
|||
|
Finish |
Enclosure: HIPS resin Punched net: Surface-treated steel plate |
||||
|
Colour |
Black/White |
||||
|
Dimensions |
244(W) x 373(H) x 235(D)mm |
||||
|
Weight |
6.5kg |
7.4kg |
|||
