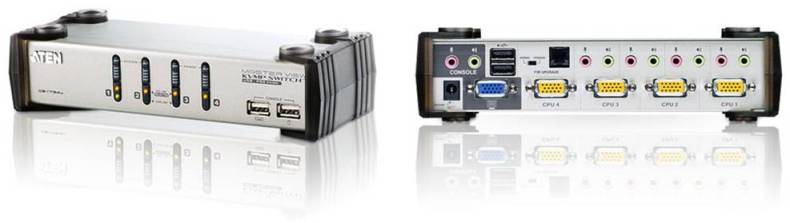

Aten CS1734A Desktop KVM Switch
Aten CS1734A 4-Port USB KVMP™ Switch
CS1734A KVM Switch has built-in USB on each of the front and rear panels and audio signalconnectors. It allows users to control the computer and peripheral devices via a signal console at ease.
Features
-
One USB console controls 4 computers and two additional USB devices
-
2 port USB Hub built in
-
Dual interface supports computers with PS/2 or USB keyboards and mice
-
Multiplatform support: compatible with all operation platforms PC (Windows, Linux and most others), Mac and Sun
-
With speaker and microphone support
-
Bi-directional switching and flexible interoperability; switch permits independent PC, independent peripheral, and independent audio function, regardless of KVM switch focus
-
AutoPS/2 and USB interface detection
-
Buzzer On/Off via hotkey
-
Keyboard and mouse emulation for error free booting
-
Computer selection via front panel pushbuttons and hotkeys
-
Superior video quality - up to 2048 x 1536; DDC2B
-
Firmware upgradable
-
OS Support:Windows 2000, Windows XP,Windows Vista, LINUX, Mac, Sun and FreeBSD
Specifications
|
Computer Connections |
4 |
||
|
Port Selection |
Hotkeys, Pushbutton |
||
|
USB Port/Audio Port Selection |
Hotkey |
||
|
Connectors |
Console Ports |
Keyboard |
1 x USB Type A Female (White) |
|
Video |
1 x HDB-15 Female (Black) |
||
|
Mouse |
1 x USB Type A Female (White) |
||
|
Speaker |
1 x Mini Stereo Jack Female(Green) |
||
|
Microphone |
1 x Mini Stereo Jack Female (Pink) |
||
|
KVM Ports |
Keyboard/Video/Mouse |
4 x SPHD-15 Female (Yellow) |
|
|
Speaker |
4 x Mini Stereo Jack Female (Green) |
||
|
Microphone |
4 x Mini Stereo Jack Female (Pink) |
||
|
USB Hub |
2 x USB Type A Female (Black) |
||
|
F/W Upgrade |
1 x RJ11 Female (Black) |
||
|
Power |
1 x DC Jack |
||
|
Switches |
Port |
4 x Pushbutton |
|
|
F/W Upgrade |
1 x Slide |
||
|
LEDs |
On Line/ Selected |
4 (Orange) |
|
|
USB Link |
4 (Green) |
||
|
Emulation |
Keyboard/Mouse |
USB |
|
|
Video |
2048 x1536; DDC2B |
||
|
Scan Interval |
1~99 seconds |
||
|
Power Consumption |
DC5V, 1.25W |
||
|
Environment |
Operating Temp. |
0~50 DegC |
|
|
Storage Temp. |
-20~60 DegC |
||
|
Humidity |
0~80% RH, Non-densing |
||
|
Physical Properties |
Housing |
Metal |
|
|
Weight |
0.70 kg |
||
|
Dimensions ( L x W x H ) |
21.00 x 8.70 x 5.50 cm |
||
Diagram
